Mackie MCU Pro

Connect the MCU Pro using USB and it will be recognised automatically.

Mackie MCU Extender Pro

This device connects through Midi, it does not have USB ports. So you must connect it to a Midi-Interface or to a Midi port on the MCU-Pro. The first time you use this device, you must select the "MC Extender" protocol for the Midi-port that you have connected to the MCU Pro Extender.

Behringer X-Touch

Set MC-Mode on the controller.

Press and hold down the Channel 1 SELECT button and then turn on the unit’s power switch to enter the X-TOUCH configuration menu. Rotate encoder 1 to change the emulation mode to MC.

If you connect this controller over the network, first make sure the network midi connection is working properly. When you see the network connection in the PrControl or LrControl plug-in, select MC-Mode for this Midi connection.

Behringer X-Touch Extender

Set MC-Mode on the controller, just like with the BehringerX-Touch.

If you connect this controller over the network use MC-Extender as the protocol.

KORG nanoKONTROL 2

When you use this controller, the plug-in will configure it automatically.

Factory Reset

If you notice that you get unexpected results, you should try a factory reset. After a factory reset, the device should work again.

To do a factory reset follow the following steps:

  1. Unplug the device.
  2. Hold down PREV TRACK button, NEXT TRACK button and CYCLE button.
  3. Plug-in the device while keeping down the three buttons.
  4. The transport buttons (except CYCLE) will blink when the factory-set default state has been restored.
>

Behringer X-Touch Mini

This device only works with LrControl if it is in regular mode. The "MC MODE" light should be off. To turn it off, unplug the USB cable. Then insert the cable again while pressing the lower left button.

Factory Reset

If you notice that you get unexpected results, you should try a factory reset. After a factory reset, the device should work again.

To do a factory reset follow the following steps:

  1. Unplug the device.
  2. Press and hold both LAYER buttons, A and B, on the right side of the device.
  3. Plug-in the device while still keeping down the two layer buttons.
  4. Keep holding down the buttons for a few seconds, the buttons will flash a few times.
  5. When only the layer A button is illuminated, the reset is complete. Release the buttons.

Using the BCF2000

Plug in the BCF2000 and select PRESET 1.

If PRESET 1 is not in factory settings, you can send the preset data to your BCF2000 from the LrControl or PrControl plug-in. You can then store it in any preset you like.

Using the BCR2000

Plug in the BCR2000 and select PRESET 1.

If PRESET 1 is not in factory settings, you can send the preset data to your BCR2000 from the LrControl or PrControl plug-in. You can then store it in any preset you like.

Icon

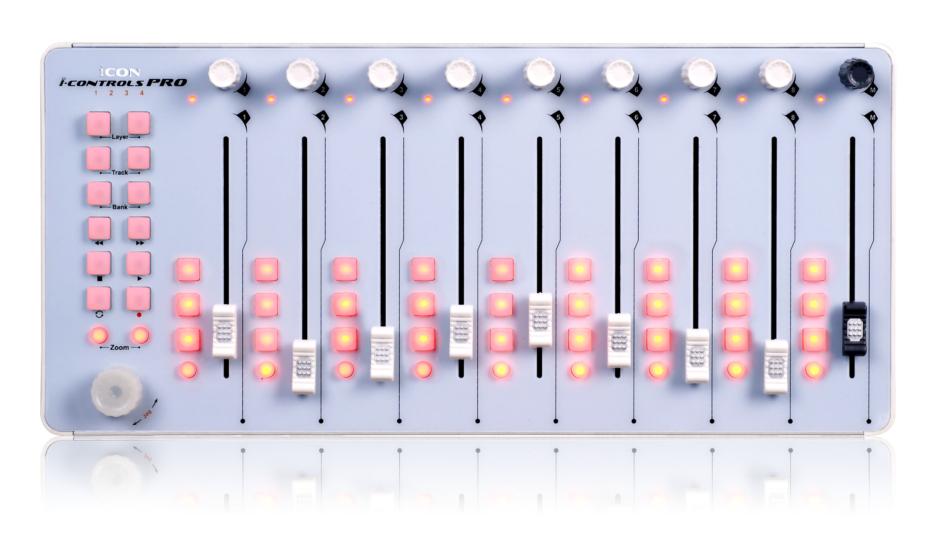

iControls Pro

LrControl supports the iControls Pro with the device default settings.

More about this controller.

Midi fighter

To use this device, you first have to load a mapping file for LrControl onto the device. This is done with the Midi Fighter Utility from DJ Techtools. Get the Midi Fighter Utility, open the LrControl.mfs file and send it to the device. You may need to update the firmware of the device as well (also with the Midi Fighter Utility).


Configuring Push Encoder

The encoders can be pushed like a button. Assigning a new function can be a bit tricky, try not to turn the encoder while you push it. It can happen that LrControl detects the turning as well and then it will just bring up the dialog to configure what happened last, the push-down or the turn of the encoder.

Platform M (+)

The Platform-M+ and the older Platform-M are almost the same and work the same way.

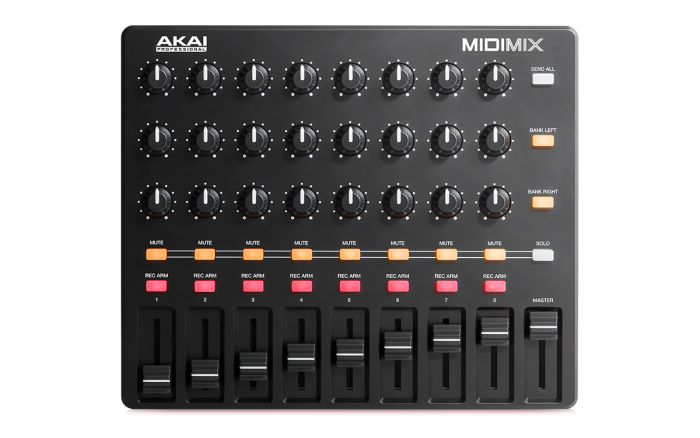

AKAI Midi Mix

If you need to reset this controller, see instructions on the AKAI website.

Novation Launchpad Mini Mk2

To get the most out of this controller, you should configure it to fit your workflow. It is great for triggering commands and setting parameters to specific values. You can also program it's buttons to adjust parameters with fixed steps.

Behringer X-Touch Compact

Use this device with it's factory settings and layer A.

Factory Reset

When you have bought a new device, you can just plug it in and LrControl should work. If you notice that you get unexpected results, you should try a factory reset. After a factory reset, the device should work again.

To do a factory reset follow the following steps:

  1. Turn the power off, with the switch on the back of the controller.
  2. Press and hold both LAYER buttons, A and B.
  3. Power on the device while still keeping down the two layer buttons.
  4. Keep holding down the buttons for a few seconds, the buttons will flash a few times.
  5. When only the layer A button is illuminated, the reset is complete. Release the buttons.
