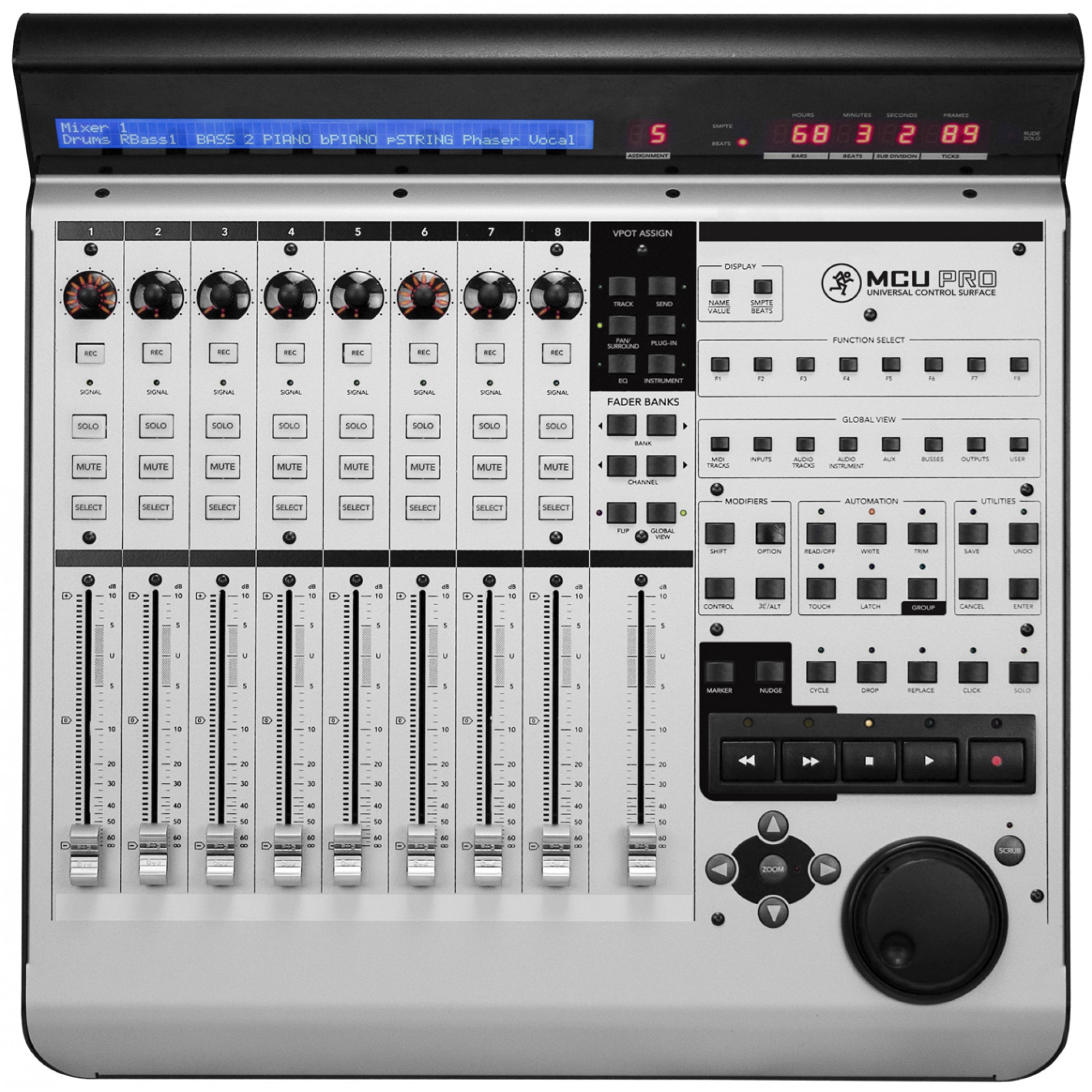

Mackie MCU Pro

If you connect a MCU Pro with USB, it is recognized automatically. Make sure you have LrControl 3.0 or newer and the controller is configured to use the MC protocol.

Mackie MCU Extender Pro

If you connect need even more controls, you can add one or more extenders.

MC Mode

If you have a controller that is compatible with the MCU-Pro, you can select MC mode in the LrControl settings in LrControl 3.0 and newer.

Many controllers have this MC mode, you usually have to setup the device to use MC mode. Check the manual of your control to find out if it has MC mode and how to enabled it.

Encoders and Faders

Layer 1
12345678MASTER
EncoderTemperatureTintSaturationSharpnessSharpen RadiusSharpen DetailSharpen Edge Masking
FaderContrastHighlightsShadowsWhitesBlacksClarityDehazeVibranceExposure
Layer 2
12345678MASTER
EncoderParametric DarksParametric LightsParametric ShadowsParametric HighlightsParametric Shadow SplitParametric Midtone SplitParametric Highlight Split
FaderContrastHighlightsShadowsWhitesBlacksClarityDehazeVibranceExposure
Layer 3
12345678MASTER
EncoderSaturation Adjustment RedSaturation Adjustment OrangeSaturation Adjustment YellowSaturation Adjustment GreenSaturation Adjustment AquaSaturation Adjustment BlueSaturation Adjustment PurpleSaturation Adjustment Magenta
FaderHue Adjustment RedHue Adjustment OrangeHue Adjustment YellowHue Adjustment GreenHue Adjustment AquaHue Adjustment BlueHue Adjustment PurpleHue Adjustment MagentaExposure
Layer 4
12345678MASTER
EncoderGray Mixer RedGray Mixer OrangeGray Mixer YellowGray Mixer GreenGray Mixer AquaGray Mixer BlueGray Mixer PurpleGray Mixer Magenta
FaderLuminance Adjustment RedLuminance Adjustment OrangeLuminance Adjustment YellowLuminance Adjustment GreenLuminance Adjustment AquaLuminance Adjustment BlueLuminance Adjustment PurpleLuminance Adjustment MagentaExposure
Layer 5
12345678MASTER
Encoder
FaderSplit Toning Shadow HueSplit Toning Shadow SaturationSplit Toning Highlight HueSplit Toning Highlight SaturationSplit Toning BalanceExposure
Layer 6
12345678MASTER
EncoderColor Noise ReductionColor Noise Reduction DetailColor Noise Reduction Smoothness
FaderSharpnessSharpen RadiusSharpen DetailSharpen Edge MaskingLuminance SmoothingLuminance Noise Reduction DetailLuminance Noise Reduction ContrastExposure
Layer 7
12345678MASTER
EncoderGrain AmountGrain SizeGrain FrequencyPerspective Rotate
FaderDistortionVertical PerspectiveHorizontal PerspectivePerspective RotateScaleAspect RatioExposure
Layer 8
12345678MASTER
Encoder
FaderDehazePost Crop Vignette AmountPost Crop Vignette MidpointPost Crop Vignette RoundnessPost Crop Vignette FeatherPost Crop Vignette Highlight ContrastExposure

Channelstrip Buttons

12345678
Encoder Press
RECFlag As RejectFlag: RemoveFlag As PickSet Rating 1Set Rating 2Set Rating 3Set Rating 4Set Rating 5
SOLOSelect Layer 1Select Layer 2Select Layer 3Select Layer 4Select Layer 5Select Layer 6Select Layer 7Select Layer 8
MUTEBefore ViewBefore/After HorizontalBefore/After VerticalCopy All Develop ParametersPaste All Develop ParametersReset Last Develop Parameter
SELECT
Icon

Other Buttons

TRACKSENDPANPLUG-INEQINSTRUMENT
BANK <> BANKCHANNEL <> CHANNELFLIPGLOBAL VIEW
NAME-VALUESMPTE-BEATS
F1F2F3F4F5F6F7F8
F1F2F3F4F5F6F7F8
MIDI TRACKSINPUTSAUDIO TRACKSAUDIO INSTRUMENTAUXBUSSESOUTPUTSUSER
SHIFTOPTIONCONTROLALT
ShiftOptionControlCommand
READ/OFFWRITETRIMTOUCHLATCHGROUP
SAVEUNDOCANCELENTER
Undo
MARKERNUDGECYCLEDROPREPLACECLICKSOLO
REWINDFAST FWDSTOPPLAYRECORDJOG-WHEEL
Change Photo
UpDownLeftRightZoomSCRUB

Tool Mode

When you use the Graduated Filter tool, the Radial Filter tool or the Adjustment Brush, the faders control the tool parameters. Start with selecting the tool and click in the image to position it. LrControl will automatically detect tool mode and adjust the faders.

12345678MASTER
EncodersTool TemperatureTool TintTool SaturationTool SharpnessTool Luminance NoiseTool MoireTool DefringeStraighten Angle
FadersTool ContrastTool HighlightsTool ShadowsTool ClarityTool DehazeTool SaturationTool Exposure

Assigning More Functions

To assign functions to your controller, just click the Customize button and follow the instructions. When asked to move a control input, move sliders or rotate knobs steadily and for about 20% of their range or more.

Function Details

Most functions are tied directly to a Lightroom parameter or function. But some have a function specific for the LrControl plug-in.
